2024 Southern Dimensions 5X10 Refrigerated Trailer (SDG-801)

2023 Southern Dimensions 5X10 Refrigerated Trailer -White in Color – 3500 lbs axles

SKU sdg-801 Category



Two 3500 lb. leaf spring axles with electric brakes

.030 aluminum metal (You choose any color)

Tubing main frame, walls, and ceiling

Radial tires

LED lights

Interior Dimensions are 4′ 2″ wide and 6′ 2″ tall

3/4″ Advantech sub flooring and walls with a lifetime warranty

.063 gauge ATP flooring compared to .024 ATP others offer

.030 Finished metal walls and ceiling

4 inches of closed cell insulation

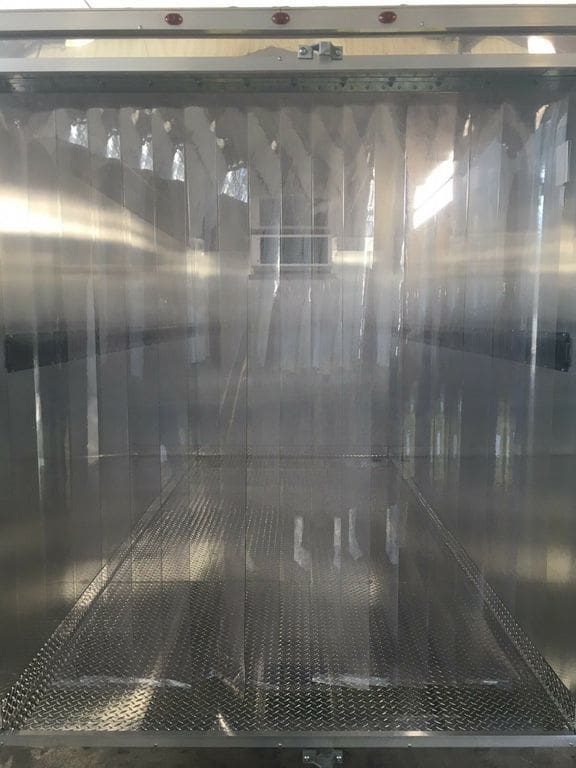

1/8″ thick freezer curtains with 60% overlap at rear opening

LED light inside

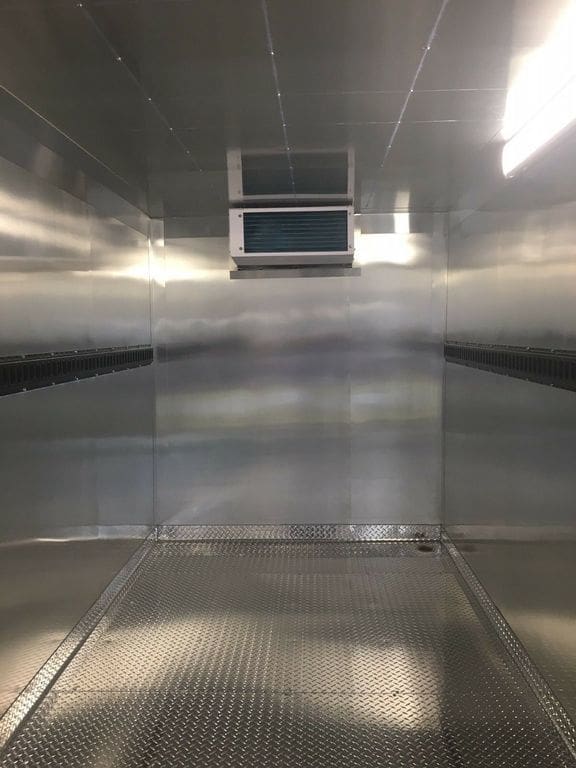

Refrigeration unit with temperature range between 35 and 50 degrees

Comes with 8500 Series generator and box

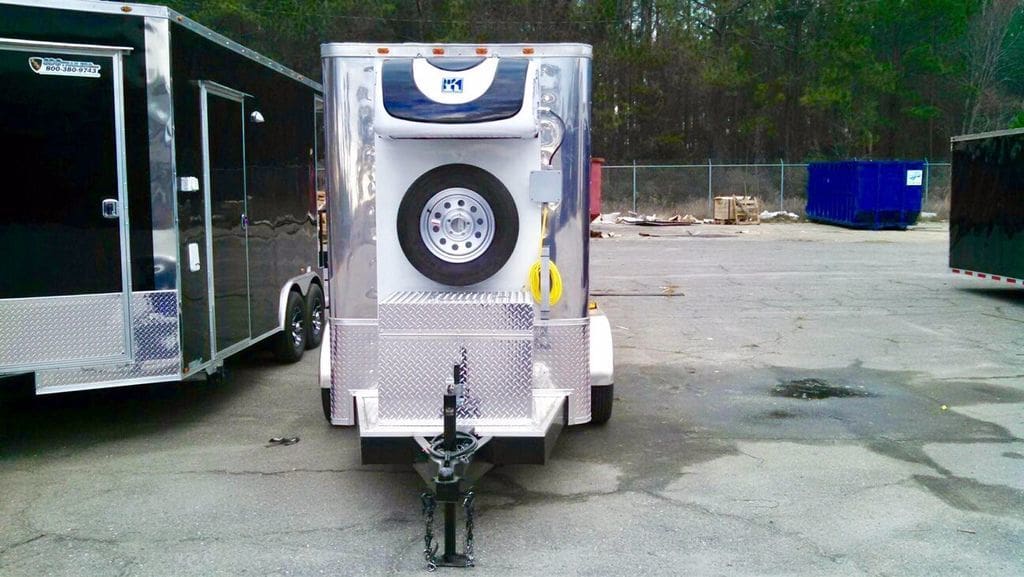

Spare tire with mount

E-Track on both side walls

7000 watt Generac generator

You can add a freezer unit for $1500 more

We can custom build any size trailer with any option that you need!!!

Unlike some our competitor’s we build these trailers from the frame up as well as many other trailers

We frame it, insulate, install, and finish it out!!!

There are many uses for these trailers for produce, meat and seafood, florist, extra storage for restaurants, and much more!

Additional information




5 X 10

Year Built



Waycross, Georgia
